What are the advantages of using glass disc insulators?

Introduction to Glass Disc Insulators

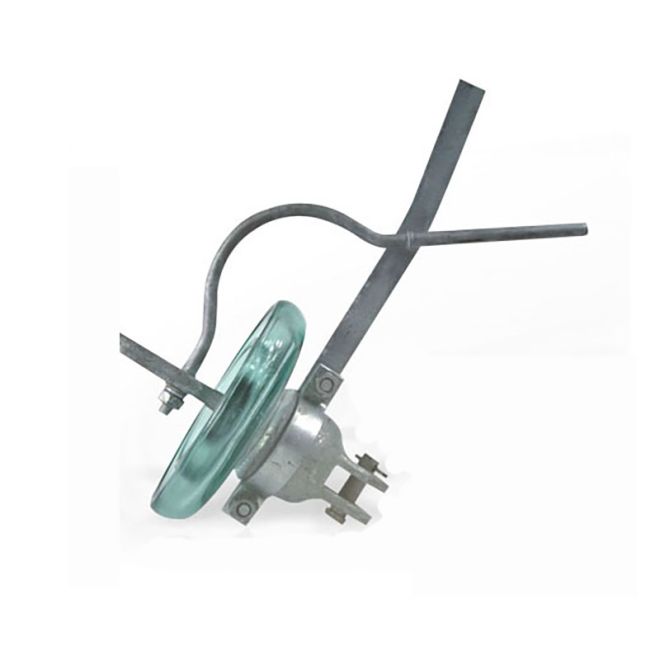

Glass disc insulators are a critical component in overhead power transmission and distribution systems. They serve the dual purpose of insulating and supporting electrical conductors, usually mounted on towers or poles. Composed of tempered or toughened glass, these disc-shaped units are connected in series using metal fittings, forming strings or insulator sets. Their widespread use is attributed to their excellent insulating properties, mechanical strength, and cost-effectiveness. This article delves into the various advantages of glass disc insulators, examining their construction, applications, and significance in modern electrical systems.

Superior Insulating Properties

High Dielectric Strength

Glass disc insulators exhibit superior dielectric strength compared to conventional materials like porcelain. Their high resistivity ensures minimal current leakage, which is pivotal for maintaining the efficiency and safety of power transmission systems. With a dielectric strength often exceeding 40 kV/mm, these insulators can effectively handle high-voltage applications, reducing the risk of electrical failures.

Low Thermal Expansion

An important characteristic of glass is its low coefficient of thermal expansion, which minimizes dimensional changes with temperature fluctuations. This property helps maintain the integrity of the insulator under varying environmental conditions, contributing to the reliable performance of the electrical system.

Mechanical Strength and Durability

Enhanced Tensile Strength

Glass disc insulators have a tensile strength that is 1 to 2 times higher than that of porcelain insulators. This mechanical resilience ensures that they can withstand substantial mechanical loads, making them suitable for supporting high-tension transmission lines over long distances.

Long Service Life

The mechanical and electrical properties of glass are not adversely affected by aging, giving these insulators an extended service life. This longevity reduces replacement frequency and maintenance costs, making them an economical choice for suppliers and contractors.

Environmental Resilience

Resistance to Corrosion

Glass disc insulators are highly resistant to corrosion, which is a significant advantage for installations in coastal regions or areas with high pollution levels. Their inherent material properties prevent degradation from environmental factors, sustaining their performance over time.

Weather and Pollution Adaptability

Special variants of glass disc insulators, such as fog type and RTV silicone-coated models, are designed to perform well in polluted environments. These insulators maintain their insulating capabilities even when subjected to adverse weather conditions like fog, rain, and UV exposure.

Ease of Inspection and Maintenance

Transparency for Easy Detection

The transparent nature of glass allows for the easy detection of impurities and air bubbles during manufacturing, ensuring high-quality products are delivered from the factory to the field. This transparency also facilitates inspection during service, helping identify issues such as contamination or damage.

Simple Maintenance Requirements

Due to their robust design and material properties, glass disc insulators require minimal maintenance. Routine cleaning and inspection can be performed efficiently, minimizing downtime and ensuring consistent performance, making them a preferred choice for wholesale distributors looking to reduce operational costs.

Cost-Effectiveness and Economic Benefits

Competitive Pricing

Compared to insulators made from other materials, glass disc insulators are relatively cost-effective. Their production involves fewer complex processes, allowing manufacturers to offer competitive pricing. This affordability appeals to suppliers and contractors aiming to manage project budgets effectively.

Reduction in Operational Costs

The long service life and minimal maintenance requirements of glass disc insulators culminate in reduced operational expenses over their lifespan. This economic advantage is significant for large-scale power transmission projects where cost savings are imperative.

Versatile Applications in Power Systems

Broad Use in Transmission Lines

Glass disc insulators are employed extensively in high-voltage transmission lines, where they support and insulate electrical conductors over vast distances. Their adaptability to different voltage levels and environmental conditions allows them to meet the diverse needs of power utilities.

Substation and Distribution System Integration

Beyond transmission lines, these insulators find applications in substations, where they support busbars and various equipment. Additionally, they are used in distribution lines to ensure safe delivery of electricity to end consumers, reinforcing their versatility in the power industry.

Compliance with International Standards

Adherence to Regulatory Standards

Glass disc insulators are manufactured to meet rigorous international standards such as IEC 60383 and ANSI C29. Compliance with these standards ensures that the insulators provide reliable performance and safety in high-voltage applications, reassuring both factories and end-users of their quality.

Quality Assurance and Testing

• Insulators undergo stringent testing procedures to certify their mechanical and electrical properties.
• This process guarantees that each product meets the necessary parameters to function effectively in power systems.

Innovation in Glass Disc Insulator Technology

Advanced Coating Techniques

Recent advancements include the application of RTV silicone coatings, which enhance the insulators' hydrophobic properties. This innovation aids in reducing contamination-related issues, ensuring sustained high-performance levels.

New Material Compositions

Research and development efforts focus on refining glass compositions to further improve the mechanical and electrical properties of these insulators. Such innovations are crucial for meeting future demands in power transmission technology.

Selection and Implementation Considerations

Factors Influencing Selection

• Mechanical strength requirements and line voltage levels.
• Local environmental conditions and safety standards.
• Compatibility with existing system components and adherence to quality standards.

Effective Implementation Strategies

The proper selection and installation of glass disc insulators are vital for optimal performance. By considering application-specific needs, suppliers can ensure the deployment of the most suitable insulator models, maximizing efficacy and reliability in electrical systems.

Huayao Provide Solutions

Huayao offers tailored solutions for the sourcing and application of glass disc insulators in power transmission systems. With an extensive product range catering to various voltage levels and environmental conditions, Huayao ensures the delivery of superior quality insulators. Our customized services include expert consultation and logistical support, catering to the unique requirements of wholesalers, factories, and suppliers. By partnering with us, clients can navigate the complexity of power system components with assurance and efficiency, achieving optimal operational performance and cost savings.
