Multi-Umbrella Type Glass Insulator
-
Double-wing Disc suspension insulator UG100B/146/450D
Double-wing Suspension Insulator toughened Glass Insulator UG100B/146/450D
high voltage suspension double-wing 100 kN toughened glass insulator UG100B/146/450D glass insulators -
Double-shed disk Suspension Insulator toughened Glass Insulator UG70B146/450D/16R
Double-wing Glass Insulator, full name Disc Suspension Double-wing Toughened Glass Insulator, is an anti-pollution insulation product optimized on the basis of standard insulators. Its core feature is a two-layer wing skirt structure (upper and lower double wings) integrally formed with glass parts, specially designed for high-voltage / ultra-high-voltage transmission lines in heavy-pollution, high-humidity and high-salt-fog areas.
-
Double-umbrella disk Suspension Insulator toughened Glass Insulator UG70B146/450D/16R
Material composition: mainly composed of tempered glass, iron cap and steel foot. Tempered glass has high mechanical strength and electrical insulation properties, and can withstand mechanical stress and electrical load in transmission lines; iron caps and steel feet are used to connect insulator strings and fixed on transmission towers, usually made of hot-dip galvanized steel, with good corrosion resistance.
-
100kN Double-Umbrella Glass Suspension Insulator UG100B/146/450D
Double umbrella skirt design: The double umbrella glass insulator has two umbrella skirts of different sizes, one large and one small are arranged alternately. This design increases the creepage distance of the insulator, can effectively prevent the flashover phenomenon in the humid, dirty and other harsh environment, improve the insulation performance and anti-fouling ability of the insulator.
-

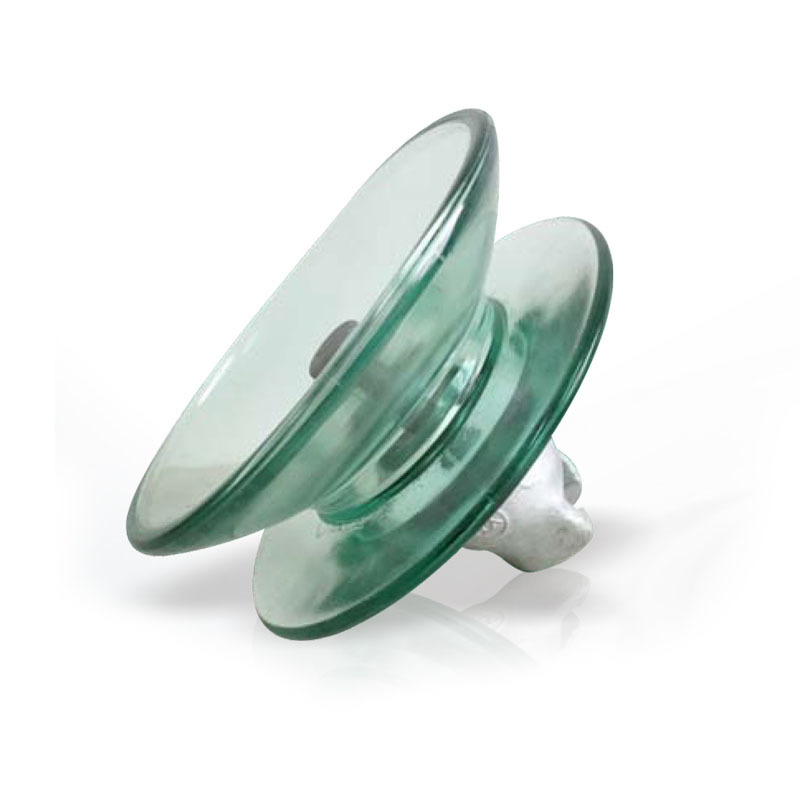

High voltage suspension 120 kN toughened glass insulator UG120B/146/450D glass insulators
120kN double-umbrella disc suspension glass insulator UG120B/146/450D
120kN double-umbrella disc suspension glass insulator UG120B/146/450D is a very common and popular glass insulator in Chinese market and overseas market such as Vietnam, Iran, Algeria etc. -
33KV 160KN IEC standard UG160B170/450 double-umbrella glass suspension insulator
120kN double-umbrella disc suspension glass insulator UG120B/146/450D
120kN double-umbrella disc suspension glass insulator UG120B/146/450D is a very common and popular glass insulator in Chinese market and overseas market such as Vietnam, Iran, Algeria etc. -
210kN insulators UG210B170 double-umbrella Suspension Electrical Glass Insulator
The product consists of an iron cap, tempered glass parts, and steel feet, and is integrated with cement adhesive. This product adopts the most advanced cylindrical head structure internationally, characterized by small head size, light weight, high strength, and large creepage distance. Can save metal materials and reduce line costs. To meet the needs of live working, traditional domestic structural shapes are used on the brim of the hat.
-
300kN insulators UG300B/195/480D double-umbrella Suspension Electrical Glass Insulator
Glass insulator is including standard type, pollution resistant type, DC type, spherical type, aerodynamic type, ground wire type, and contact network for electrified railways
Jiangxi Huayao electric Co.,ltd produce standard type glass insulator 40-550Kn, Pollution resistant type 70-400Kn, mutil-umbrella type 120-330kN, Glass insulator aerodynamic type 120-300kN, ground wire type.
