Choosing the right glass disc insulator can feel like blindfolded shopping: too many options, weird climate issues, and surprise pollution levels all waiting to fry your line (and your budget).
To fix this, match insulator type to local climate and pollution class using field data, system studies, and standards such as IEC 60815; for reference, see this detailed insulator performance report.
⚡ Influence of Coastal Salinity and Humidity on Glass Disc Insulator Performance
Coastal climates bring high salt, humidity, and wind, which quickly coat glass disc insulators and raise flashover risk. Proper design and selection keep lines stable.
Engineers must watch salt density, fog days, and cleaning cycles to match insulator profile, creepage distance, and hardware material to the real site conditions.
1. Salt Spray Deposition and Creepage Distance
In marine zones, salt films form fast and stay wet. Designers usually increase creepage distance and use anti-fog profiles to keep leakage currents under control.
2. Humidity, Fog, and Wetting Patterns
Persistent fog makes salt layers conductive. Hydrophobic coatings and optimized shed spacing help delay continuous water films and reduce the chance of flashover.
3. Corrosion of Fittings and Hardware
Metal caps, pins, and fittings face strong corrosion near coasts. Galvanized steel, stainless steel, or treated alloy hardware extends life and reduces maintenance.
4. Reference to Companion Products in Coastal Networks

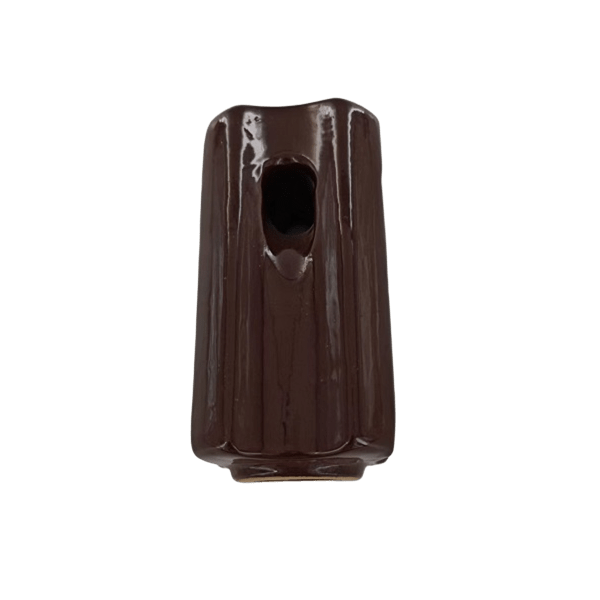

Coastal lines often combine glass discs with support products like ANSI 54-3 PORCELAIN STAY INSULATORS, 54-3 GUY STRAIN INSULATORS to keep structures stable under strong sea winds.
🌧️ Acid Rain, Industrial Emissions, and Their Effects on Surface Leakage Currents
Industrial zones release SO₂ and NOₓ, which form acid rain and sticky pollution. These deposits lower surface resistance and greatly increase leakage currents on glass discs.
Transmission planners should map emission sources, rainfall, and washing intervals, then select suitable profiles and pollution performance classes.
1. Chemical Attack on Glass Surfaces
Acidic moisture can lightly etch glass over many years. Smooth, toughened glass still resists well, but repeated washing and inspection remain important.
2. Leakage Current Trends under Different Pollution Classes
Leakage current rises with higher equivalent salt deposit density (ESDD). The chart below shows a simple comparison for clean, medium, and heavy pollution.
3. Role of Industrial Dust and Soot
Soot and cement dust bind with moisture, creating a conductive mud layer. Anti-pollution profiles and planned live-line washing help keep performance stable.
4. Coordination with Post Insulators in Substations
In substations close to factories, glass discs work with robust units like the High voltage post electrical porcelain insulator 57-3 for improved pollution withstand.
🌬️ Wind-Blown Dust, Sandstorms, and Erosion Resistance Requirements for Glass Insulators
Desert and dry inland areas expose glass discs to sandstorms and dust, which erode sheds and raise cleaning needs over the service life.
Proper grading rings, shield angles, and routine inspections keep mechanical strength and insulation margin within safe limits.
1. Abrasion of Glass Surfaces by Sand
Fast sand particles slowly frost the glass. Toughened glass keeps its strength, but surface roughness can hold more dust and increase cleaning effort.
2. Design Features for Dusty Climates
Wide sheds and steep profiles let dust slide off in wind and rain. Engineers also prefer strings that can be easily washed or replaced in sections.
3. Interaction with Guy and Stay Insulators
Lines in dusty, windy zones often pair glass discs with strong stays such as ANSI 54-4 PORCELAIN STAY INSULATORS, 54-4 GUY STRAIN INSULATORS to resist mechanical loads.
🌡️ Temperature Extremes, UV Radiation, and Long-Term Aging Characteristics of Glass Discs
Glass disc insulators face hot summers, cold winters, and strong sunlight, especially on high-altitude and tropical lines.
Correct thermal and UV design protects mechanical strength and avoids hidden defects over decades of service.
1. Thermal Shock and Daily Temperature Cycles
Fast temperature swings can stress glass. Toughened glass discs handle thermal shock well, but engineers still check for safe mechanical and electrical margins.
2. UV Exposure and Surface Aging
UV light does not deeply age glass, but it can affect seals and coatings. Quality sheds and sealants keep moisture away from metal fittings.
3. Aging Tests and Service Life Estimation
Lab aging tests under combined heat, cold, and UV help predict long-term performance. Results guide selection of disc profile, size, and string length.
🏭 Guidelines for Selecting Huayao Glass Disc Insulators in Polluted Environments
Polluted environments require a step-by-step method to choose glass discs that limit outages and cut life-cycle cost.
Huayao combines field data with type tests to match insulator design to actual climate and pollution levels.
1. Classify Site Pollution and Climate
First, define pollution class, salt level, rainfall, and wind. Then decide the creepage distance, disc diameter, and number of units in each string.
2. Combine Mechanical and Electrical Requirements
Check maximum tension, wind, and ice loads. Select discs that meet both mechanical strength and required wet and polluted withstand levels.
3. Maintenance and Washing Strategy
Plan washing frequency, inspection routes, and spare stock. In very harsh sites, consider thicker glass, anti-fog profiles, and easy replacement designs.
Conclusion
Climate and pollution strongly shape glass disc insulator performance. Salt, acid rain, dust, and temperature all change leakage current and aging behavior.
By classifying sites, using tested Huayao designs, and planning maintenance, utilities can secure long service life and stable grid operation.
Frequently Asked Questions about glass disc insulator customized
1. Can Huayao customize glass discs for special pollution levels?
Yes. Huayao can adjust creepage distance, disc profile, and hardware type based on your measured ESDD, NSDD, and climate data.
2. How do I choose between standard and anti-fog profiles?
If your site has frequent fog, sea spray, or heavy industrial pollution, anti-fog profiles with longer creepage distance are usually the safer option.
3. What data should I provide for a custom design?
Share system voltage, mechanical loads, pollution class, salt level, washing interval, and local climate. These values help engineers optimize your insulator string.
