high voltage suspension 70 kN electrical glass insulator PS70E glass insulators
Short Description:

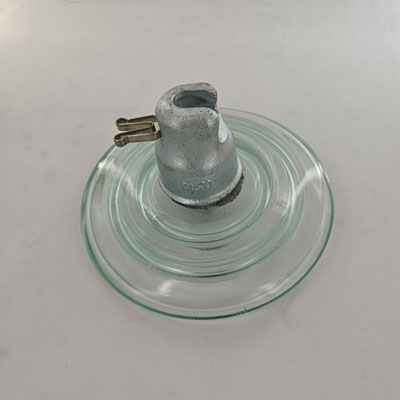

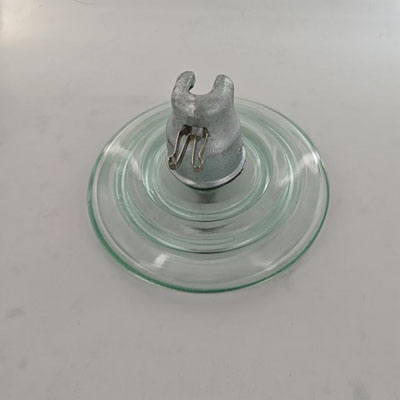

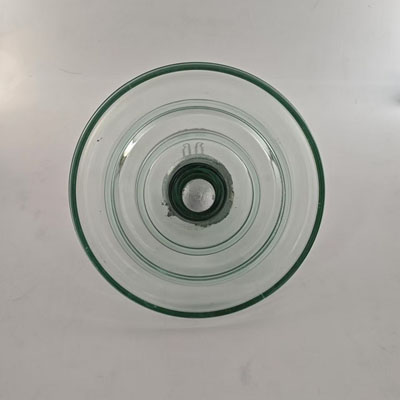

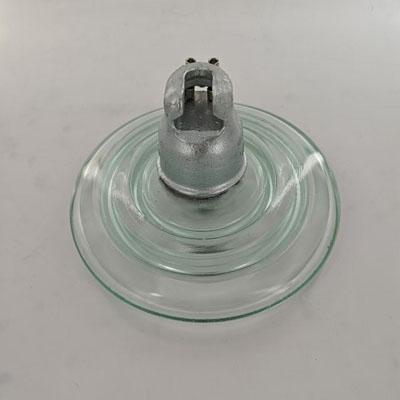

70kN standard disc suspension glass insulator PS70E
70kN standard disc suspension glass insulator PS70E is a very common and popular glass insulator in Chinese market and overseas market such as Vietnam, Iran, Algeria etc.
Phone
whatsapp
Email
Product Introduction
Jiangxi huayao electric Co.,ltd is professional in produce this item, the daily output of this item is 10000 pieces.
The same series of PSV70A are including PSV120A, PSV160A, PSV210A, PSV240A,PSV300A
Main types of glass insulator
Glass insulator is including standard type, pollution resistant type, DC type, spherical type, aerodynamic type, ground wire type, and contact network for electrified railways
Jiangxi Huayao electric Co.,ltd produce standard type glass insulator 40-550Kn, Pollution resistant type 70-400Kn, mutil-umbrella type 120-330kN, Glass insulator aerodynamic type 120-300kN, ground wire type.
Following is standard type glass insulator 40-550Kn:
|
IEC type |
Diameter D (mm) |
spacing H (mm) |
creepage distance L(mm) |
size of coupling (mm) |
Mechnical failing load (kN) |
Mechnical routine test (kN) |
Power frequency withstand voltage DRY (kV) |
Power frequency withstand voltage WET (kV) |
Radio interference voltage (10kv.1MHZ) |
Corona test (pin&cap) (kV) |
Power frequency electric Arc test |
Net weight per unit (kg) |
||||||||||
|
U40B |
178 |
110 |
185 |
11 |
40 |
20 |
40 |
20 |
≤50 |
18/22 |
0.12/20kA |
2.5 |
||||||||||
|
U70BL/146 |
255 |
146 |
320 |
16 |
70 |
35 |
70 |
40 |
≤50 |
18/22 |
0.12/20kA |
3.5 |
||||||||||
|
PSV70A/ U70BS/127 |
255 |
127 |
320 |
16 |
70 |
35 |
70 |
40 |
≤50 |
18/22 |
0.12/20kA |
3.5 |
||||||||||
| Product name | Glass insulator | Model number | PS70E |
| Material | fiberglass | Application | high voltage |
| Rated voltage | 33kV | Product name | high voltage insulator |
| Brand name | Huayao | Usage | Transmission lines |
| Application | insulation | Rated voltage | 12kV |
| Place of origin | Jiangxi, China | Certificate | ISO9001 |
| Standard | IEC60383 | Color | Jade green |
Product Details
Place of Origin: ChinaBrand name: HUAYAO
Certification: ISO9001
Daily output: 10000 pieces
Packaging: 6 pieces in wooden case, then put in pallet
Minimum Order Quantity: 10 pieces
Price (USD): 3.29
Packaging Details: normal export packaging
Supply Ability: 50000 pcs
Delivery Port: Ningbo, Shanghai
Payment Term: TT, L/C, FCA
Quick detail

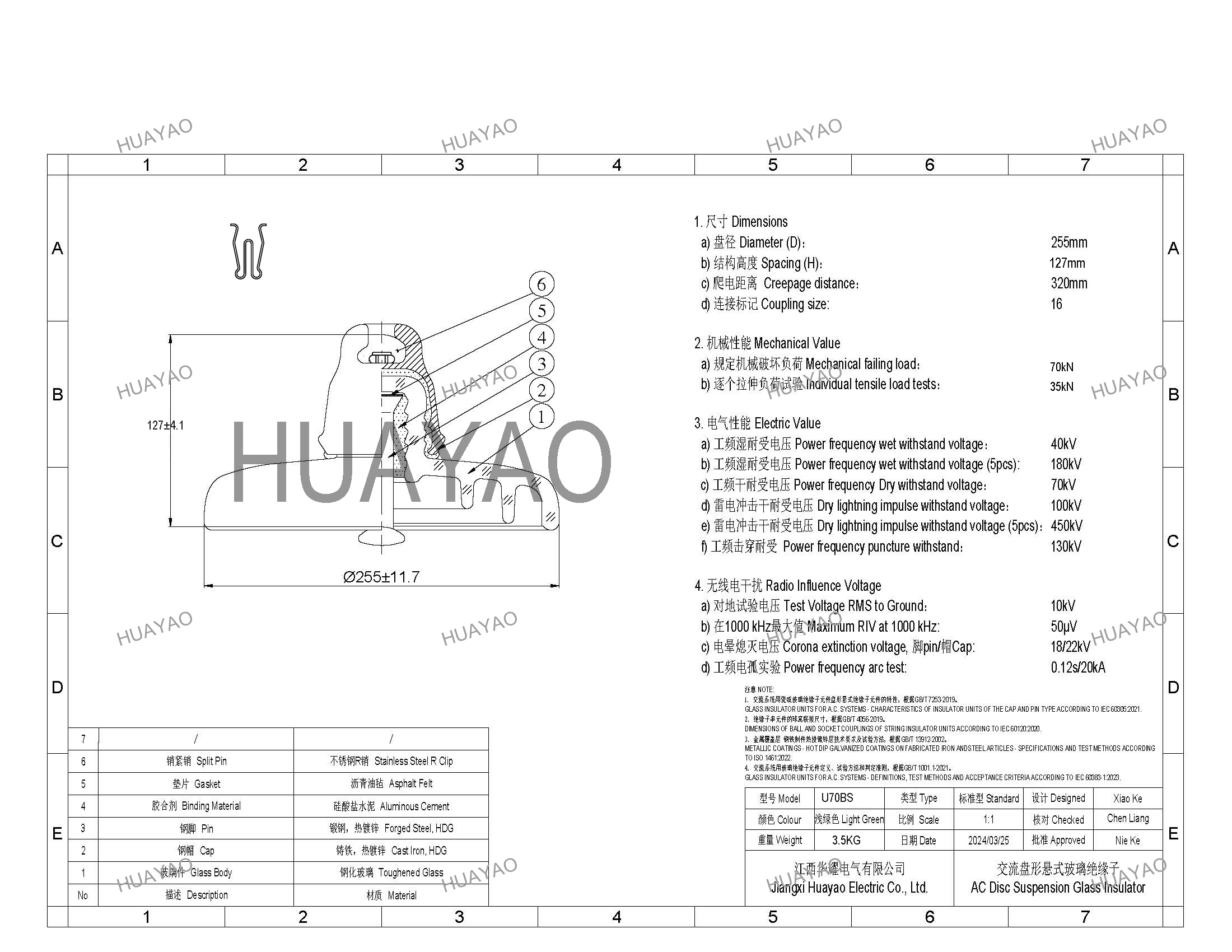

Glass Standard Profile Suspension Insulators PS70E / U70BSDimensions
Diameter (D): 255mm
Spacing (H): 127mm
Creepage Distance: 320mm
Coupling Size: 16mm
Mechanical Values
Mechanical Failing Load: 70kN
Tension Proof: 35kN
Electrical Values
Dry Power-frequency Withstand Voltage: 70kV
Wet Power-frequency Withstand Voltage: 40kV
Dry Lightning Impulse Withstand Voltage: 100kV
Puncture Withstand Voltage: 130kV
Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV
Packing and Shipping Data
Net Weight, Approximate: 3.5kg
Warehouse of Huayao workshop
Huayao product has been awarded 1. Xi'an High Voltage Apparatus Research Institute Co., Ltd
- National Ceramic Product Quality Inspection and Testing Center Jiangxi Ceramic Testing Center
The inspection report of the institution.
All products undergo full acceptance by international authoritative third-party organizations, and can provide testing and certification services from Intertek, SGS, BV and other institutions. We strictly follow international standards to control product quality, provide traceable and verifiable quality assurance for global customers, and meet the comprehensive requirements of overseas project bidding and compliance review.
Standard of glass insulator:
The tests have been performed in accordance with:
GB/T1001.1-2021 Insulators for overhead lines with a norminal voltage above 1000V Part1: Ceramic or glass insulator units for a.c. systems Definitions, test methods and acceptance criteria (IEC 60383-1:2021 MOD)
GB/7253-2019 Insulator for overhead lines with a nominal voltage above 1000V-Ceramic or glass insulator units for a.c. systems-Characteristics of insulator units of cap and pin type (IEC 60305:2021 MOD)
IEC 60383-1:2023 Insulators for overhead lines with a norminal voltage above 1000V
IEC 60120:2020 Dimensions of ball and socket couplings of string insulator units
Jiangxi Huayao electric Co.,ltd strictly compliance with above standard. We do the factory test report as above standard.
We always do following test for each products:
1. Verification of the Dimensions
2. Verifications of Displacements
3. Locking system test
4. Galvanized test
5. Thermal shock test
6. Mechanical Failing Load Test
7.Power frequency puncture withstand test
JIANGXI HUAYAO ELECTRIC CO.,LTD attend the exhibition in VIETNAM ETE & ENERTEC EXPO，ELECTRICITY ALGERIA EXPO，IRAQ Energy Expo conference for electricity, oil, gas， Asia (Thailand) Electricity, Transmission and Distribution, and Energy Exhibition etc.
-
