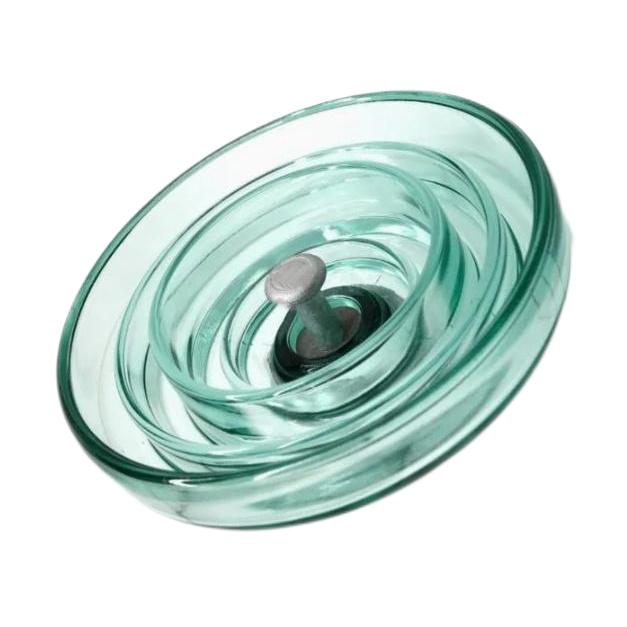

High voltage 550mm 20 Pin disc transparent toughened glass insulators U160BSP

High voltage 550mm 20 Pin disc transparent toughened glass insulators U160BSP

Short Description:

160kN standard disc suspension glass insulator U160BSP is a very common and popular glass insulator in Chinese market and overseas market such as Vietnam, Iran, Algeria etc.

This item is not common in Chinese market, it should by customized, please order in advance when you needed.


phone Phone

+86-15870073965
wp whatsapp

+86 15870073965
el Email

admin@huayaoelectric.com
download
Product Detail
Product Tags
160kN standard disc suspension glass insulator U160BSP

160kN standard disc suspension glass insulator U160BSP is a very common and popular glass insulator in Chinese market and overseas market such as Vietnam, Iran, Algeria etc.

This item is not common in Chinese market, it should by customized, please order in advance when you needed.


Structural composition:

Glass insulator is an insulating component used in high-voltage transmission lines and electrical equipment. It is made of glass material and has good insulation performance and mechanical strength. It is mainly used to support and fix the wires of transmission lines, and prevent current leakage to the ground or other objects to ensure the safety and stability of power transmission.

Main types of glass insulator：

Glass insulator is including standard type, pollution resistant type, DC type, spherical type, aerodynamic type, ground wire type, and contact network for electrified railways
Jiangxi Huayao electric Co.,ltd produce standard type glass insulator 40-550Kn, Pollution resistant type 70-400Kn, mutil-umbrella type 120-330kN, Glass insulator aerodynamic type 120-300kN, ground wire type.

Following is anti fog type glass insulator 40-550Kn:

Main technical parameters (GB and IEC) of stain resistant disk suspension type glass insulator
IEC type Diameter  D (mm) spacing  H (mm) creepage distance L(mm) size of coupling       (mm) Mechnical failing load (kN) Mechnical routine test       (kN) Power frequency withstand voltage DRY  (kV) Power frequency withstand voltage WET (kV) lighting impulse withstand voltage (kV) Min power frequency puncture voltage (kV) Net weight per unit (kg)
U70BP/146 260 146 400 16 70 35 80 45 110 130 5.00
U70BLP/146 280 146 450 16 70 35 85 50 125 130 5.50
U70BP/146 320 146 550 16 70 35 90 55 140 130 7.50
U100BLP/146 260 146 400 16 100 50 80 45 110 130 5.00
U100BLP/146 280 146 450 16 100 50 85 50 125 130 5.50
U100BP/146 320 146 550 16 100 50 90 55 140 130 7.50
U120BLP/146 260 146 400 16 120 60 80 45 110 130 5.00
U120BP/146 280 146 450 16 120 60 85 50 125 130 5.50
U120BP/146 320 146 550 16 120 60 90 55 140 130 7.50
U160BSP/155 280 155 450 20 160 80 85 50 125 130 7.00
U160BP/170 280 170 450 20 160 80 85 50 125 130 7.20
U160BLP/170 320 170 550 20 160 80 90 55 140 130 9.20
U160BP/155 320 155 550 20 160 80 90 55 140 130 9.00
U160BSP/146 320 146 550 20 160 80 90 55 140 130 8.80
U210BP/170 320 170 550 20 210 105 90 55 140 130 10.00
U240BP/170 320 170 550 24 240 120 90 55 140 130 10.50
U240BP/170 320 170 550 20 240 120 90 55 140 130 10.50
U300BP/195 390 195 710 24 300 150 95 60 150 130 14.00
U300BP/195 380 195 635 24 300 150 95 60 150 130 14.00
U420BP/205 380 205 620 28 420 210 90 55 140 130 16.50
U550BP/240 380 240 650 32 550 275 95 55 145 130 20.50

Product name: Glass insulator Model number:U160BSP/146
Material: fiberglass Application: high voltage
Rated voltage: 33kV Product name: high voltage insulator
Brand name: Huayao Usage：Transmission lines
Application: insulation Rated voltage: 12kV
Place of origin: Jiangxi, China Certificate:ISO9001
Standard: IEC60383 Color: Jade green


Product Details

160kN standard disc suspension glass insulator U160BSP

Place of Origin:  China
Brand name:  HUAYAO
Certification:  ISO9001
Daily output:  10000 pieces
6 pieces in wooden case, then put in pallet.

Payment & Shipping
Minimum Order Quantity: 10 pieces
Packaging Details:  normal export packaging
Supply Ability:  50000pcs
Delivery Port:  Ningbo,Shanghai
Payment term:  TT, L/C, FCA


Quick Detail：

Glass Standard Profile Suspension Insulators LXWP7-160 / U160BSP/146

Dimensions
Diameter (D): 320mm
Spacing (H): 146mm
Creepage Distance: 550mm
Coupling Size: 20mm

Mechanical Values
Mechanical Failing Load: 160kN
Tension Proof: 80kN

Electrical Values
Dry Power-frequency Withstand Voltage: 90kV
Wet Power-frequency Withstand Voltage: 55kV
Dry Lightning Impulse Withstand Voltage: 110kV
Puncture Withstand Voltage: 130kV

Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV

Packing and Shipping Data
Net Weight, Approximate: 9.0kg

Compared with other types of insulators, such as ceramic insulators, tempered glass insulators have the following main advantages:

1. High mechanical strength: Tempered glass insulators can withstand greater tension and pressure, which makes them more reliable in applications such as high-voltage power lines.
2. Good pollution resistance: The surface of the glass material is not easy to accumulate pollution, which reduces the flashover accident caused by pollution and improves the safety of the power system.
3. The self-explosion rate is relatively low: When the tempered glass insulator fails during use, it often shows self-explosion. This failure mode is easy to be found and located, which is conducive to timely maintenance and replacement.
4. The production process is relatively simple: The production process of tempered glass insulators is relatively simple, which helps to reduce costs and improve production efficiency.
5. Beautiful appearance: Tempered glass insulators are usually transparent or translucent, and the appearance is beautiful and generous, which to a certain extent enhances the overall image of power facilities.
In order to meet the market request, Jiangxi Huayao electric Co.,ltd has established a production line for ultra-high voltage tempered glass insulators with advanced production technology by introducing world-class production and testing equipment from Germany, Italy, and other countries. It has the ability to produce over 6 million pieces of AC and DC glass insulators annually.

The Production process flow:

The production process of glass insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:
Mix raw material=>melt glass liquid=>press to glass insulator shape=> tempering treatment=>cold and shock test=> Glue assembly=> routine test and other test=> Finished products package.

Standard of glass insulator:

The tests have been performed in accordance with:
GB/T1001.1-2021 Insulators for overhead lines with a norminal voltage above 1000V Part1: Ceramic or glass insulator units for a.c. systems Definitions, test methods and acceptance criteria (IEC 60383-1:2021 MOD)
GB/7253-2019 Insulator for overhead lines with a nominal voltage above 1000V-Ceramic or glass insulator units for a.c. systems-Characteristics of insulator units of cap and pin type (IEC 60305:2021 MOD)
IEC 60383-1:2023 Insulators for overhead lines with a norminal voltage above 1000V
IEC 60120:2020 Dimensions of ball and socket couplings of string insulator units
Jiangxi Huayao electric Co.,ltd strictly compliance with above standard. We do the factory test report as above standard.
We always do following test for each products:
1. Verification of the Dimensions
2. Verifications of Displacements
3. Locking system test
4. Galvanized test
Galvanized layer Specified Value
Cap ：Minimum values of single sample  70 m；
Average values of all samples  85 m
Pin：Minimum values of single sample  70 m；
Average values of all samples  85 m
5.Thermal shock test
Specified values
The test sample is heated to above the temperature of more than100 K, and then immersed in temperature which does not exceed 50C in water for more than 2 min.
Test condition
4. pieces glass insulators are heated to the temperature of 130C,
the temperature of cold water25C, temperature difference 105K, keep in cold water for 2 min.
Test result
Samples are OK.
6.Mechanical Failing Load Test
Specified Values SFL=160kN, Mechanical load 165kN no mechanical failing
7.Power frequency puncture withstand test
The results of power frequency puncture withstand test please check the following table, no puncture.



Customer visit：
