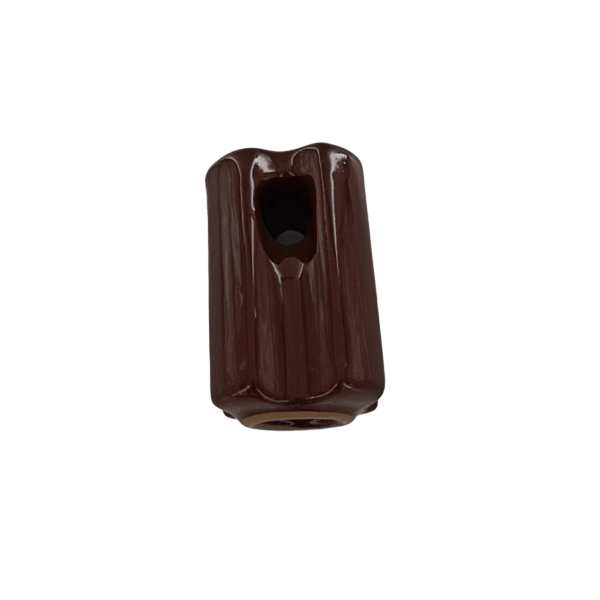

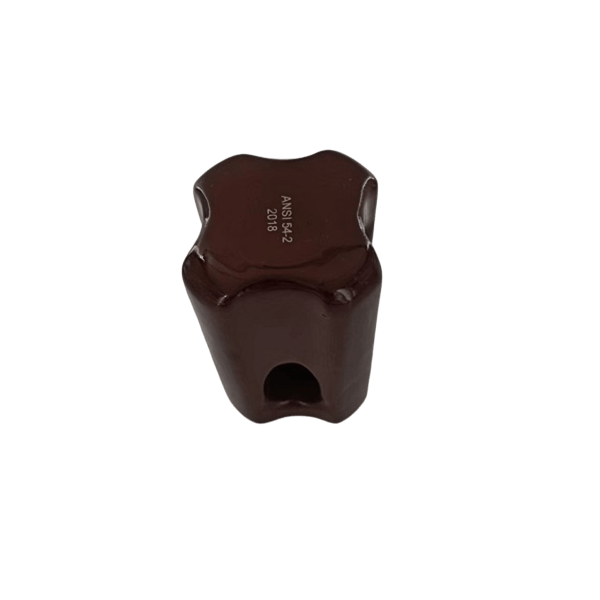

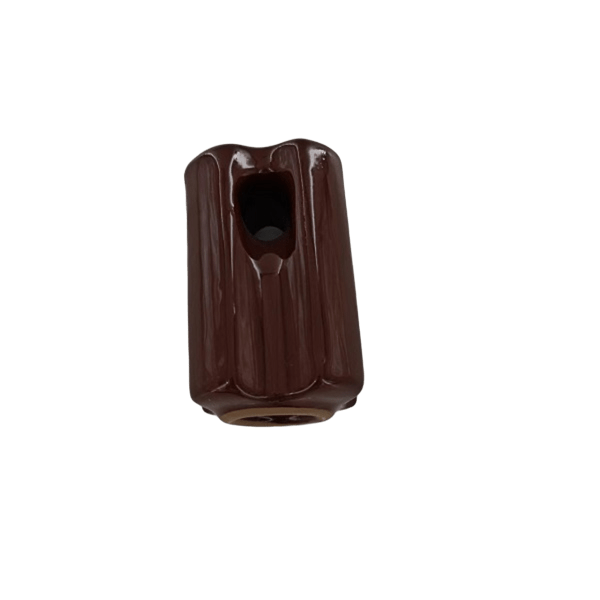

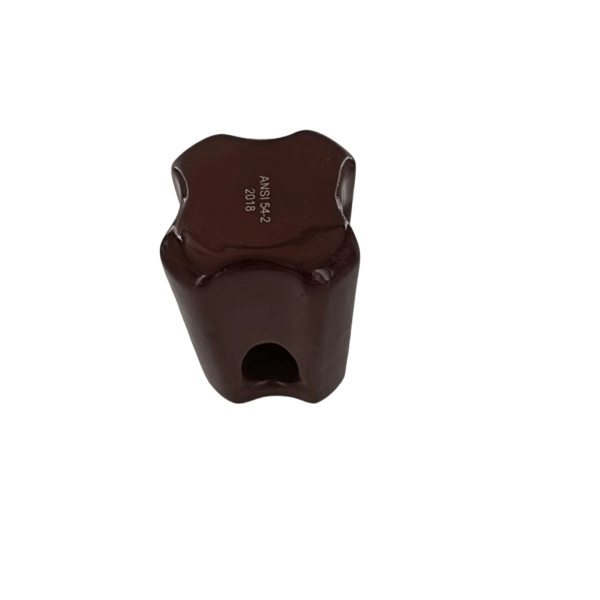

ANSI 54-2 PORCELAIN STAY INSULATORS, 54-2 GUY STRAIN INSULATORS
Short Description:
54-2 Series 11kV/33kV ANSI Porcelain Guy Strain Insulator / Stay Insulators / Ceramic Insulator Stay for Pole Accessories
Phone
whatsapp
Email
| Product name: porcelain insulator | Model number:54-2 |
| Material: porcelain | Application: medium voltage |
| Rated voltage: 11kV/33kV | Product name: medium voltage spool insulator |
| Brand name: Huayao | Usage：Transmission lines |
| Application: insulation | Place of origin: Jiangxi, China |
| Standard: IEC60383 | Color: brown/white |
Product Details
| 54-2 porcelain spool type insulator Place of Origin: China Brand name: HUAYAO Certification: ISO9001 Daily output: 10000 piece Payment & Shipping Minimum Order Quantity: 10 pieces Packaging Details: normal export packaging Supply Ability : 50000pcs Delivery Port: Ningbo,Shanghai Payment term: TT, L/C, FCA |
 |
Quick Detail：
| Porcelain Standard Profile stay Insulators 54-2 Dimensions Spacing (H): 108mm Creepage distance:48mm Mechanical Values Cantilever strength: 55kN Electrical Values Low frequency dry flashover voltage:30kV Low frequency wet flashover voltage: 15kV Packing and shipping data: Net weight: 0.65kg |
 |
Main type of pin insulator:
| ANSI class | 54-1 | 54-2 | 54-3 | 54-4 |
| Dimensions | ||||
| Height mm | 89 | 108 | 140 | 172 |
| Creepage distance mm | 41 | 48 | 57 | 76 |
| Mechanical values | ||||
| Cantilever strength kN | 45 | 55 | 91 | 91 |
| Electrical values | ||||
| Low frequency dry flashover voltage kV | 25 | 30 | 35 | 40 |
| Low frequency wet flashover voltage kV | 12 | 15 | 18 | 23 |
| Packing and shipping data | ||||
| Net weight, approximate kg | 0.5 | 0.65 | 1.2 | 1.85 |
Related products for porcelain insulator:
The Production process flow:
The production process of porcelain insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:
Mix raw material=>make blank shape=>Drying=> Glazing=>put into kiln=> Glue assembly=> routine test and other test=> Finished products package
Workshop of Jiangxi Huayao Electric Co.,Ltd：
Customer visit：
