11 CTV 254 High voltage suspension 70 kn electrical glass insulator U70BL for Algeria market

11 CTV 254 High voltage suspension 70 kn electrical glass insulator U70BL for Algeria market

Short Description:

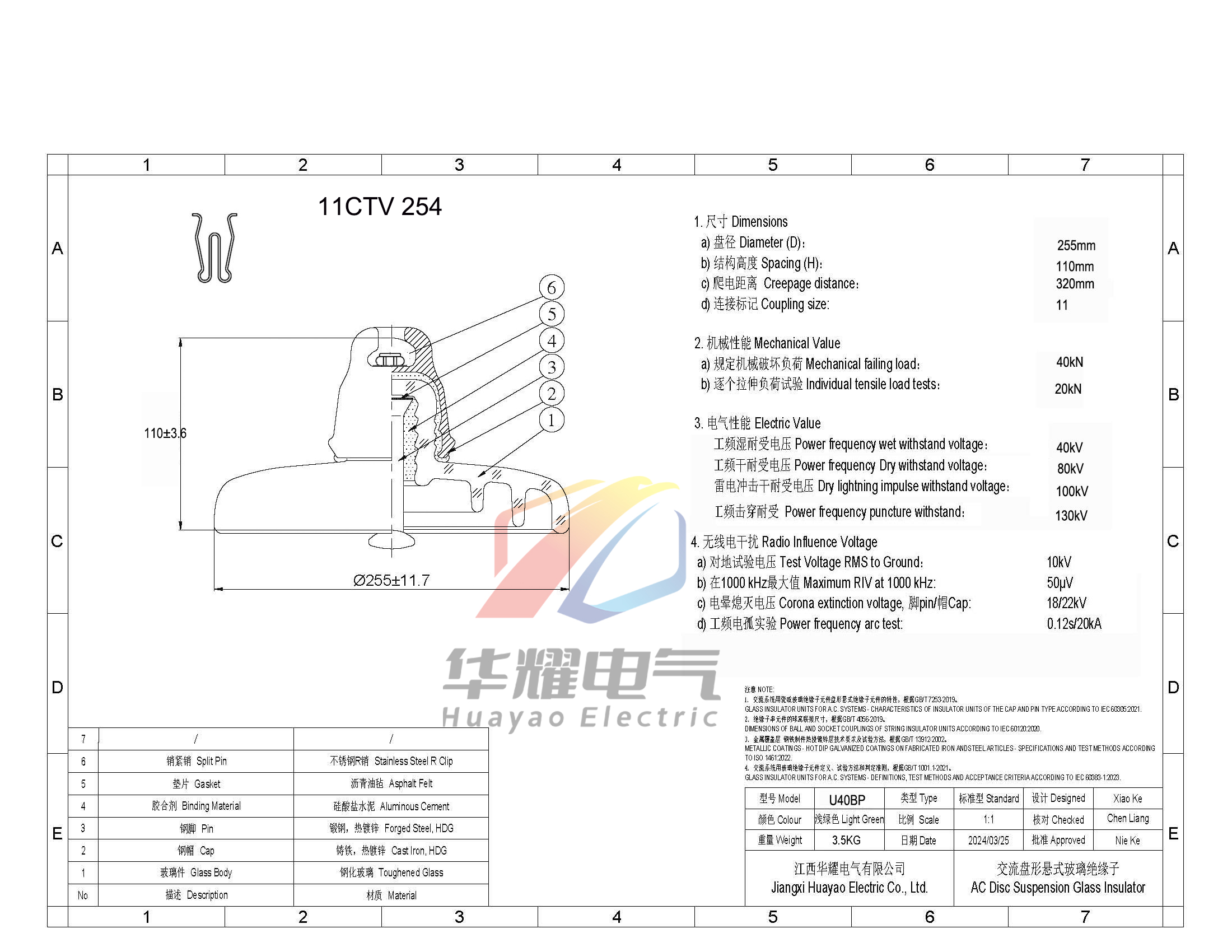

11 CTV 254 U40BP 40KN standard disc suspension glass insulator U40BP
U40BP/146 Suspension Insulator String Essential for Tower Insulation D255xH110mm Mechanical Load 40kN
40kN standard disc suspension glass insulator U40BP is a very common and popular glass insulator in Chinese market and overseas market such as Vietnam, Iran, Algeria etc.
Jiangxi huayao electric Co.,ltd is professional in produce this item, the daily output of this item is 10000 pieces.


phone Phone

+86-15870073965
wp whatsapp

+86 15870073965
el Email

admin@huayaoelectric.com
download
Product Detail
Product Tags
Glass insulator is a special insulation component used in overhead transmission lines to provide insulation and support for wires.

Glass insulator is including standard type, pollution resistant type, DC type, spherical type, aerodynamic type, ground wire type, and contact network for electrified railways

Jiangxi Huayao electric Co.,ltd produce standard type glass insulator 40-550Kn, Pollution resistant type 70-400Kn, mutil-umbrella type 120-330kN, Glass insulator aerodynamic type 120-300kN, ground wire type.

Structural composition:

Glass insulators are usually composed of iron caps, tempered glass pieces, and steel feet, which are bonded together with cement adhesive.

Main types of glass insulator：

Following is standard type glass insulator 40-550Kn:

Main technical parameters (GB and IEC) of standard disk suspension type glass insulator
IEC type Diameter  D (mm) spacing  H (mm) creepage distance L(mm) size of coupling       (mm) Mechnical failing load (kN) Mechnical routine test       (kN) Power frequency withstand voltage DRY  (kV) Power frequency withstand voltage WET (kV) lighting impulse withstand voltage (kV) Min power frequency puncture voltage (kV) Net weight per unit (kg)
U40B 178 110 185 11 40 20 40 20 50 130 2.5
U70BL/146 255 146 320 16 70 35 70 40 100 130 3.5
U70BS/127 255 127 320 16 70 35 70 40 100 130 3.5
U100BL/146 255 146 320 16 100 50 70 40 100 130 3.5
U100BS/127 255 127 320 16 100 50 70 40 100 130 3.5
U120B/146 255 146 320 16 120 60 70 40 100 130 3.6
U120B/127 255 127 320 16 120 60 70 40 100 130 3.6
U160BL/170 280 170 400 20 160 80 75 45 110 130 6.5
U160B/155 280 155 450 20 160 80 75 45 110 130 6.3
U160BS/146 280 146 400 20 160 80 75 45 110 130 6.3
U210B/170 280 170 460 20 210 105 85 45 125 130 6.9
U210B/170 280 170 400 20 210 105 75 45 110 130 6.9
U240B/170 280 170 400 24 240 120 75 45 110 130 6.9
U240B/170 280 170 460 24 240 120 85 50 110 130 6.9
U300B/195 320 195 485 24 300 150 85 50 130 130 10.6
U420/205 360 205 550 28 420 210 90 55 140 130 16
U550B/240 380 240 620 32 550 275 95 55 145 130 21.5

Product name: Glass insulator Model number:U70BL
Material: fiberglass Application: high voltage
Rated voltage: 33kV Product name: high voltage insulator
Brand name: Huayao Usage：Transmission lines
Application: insulation Rated voltage: 12kV
Place of origin: Jiangxi, China Certificate:ISO9001
Standard: IEC60383 Color: Jade green

Product Details：

Place of Origin: China
Brand name: HUAYAO
Certification: ISO9001

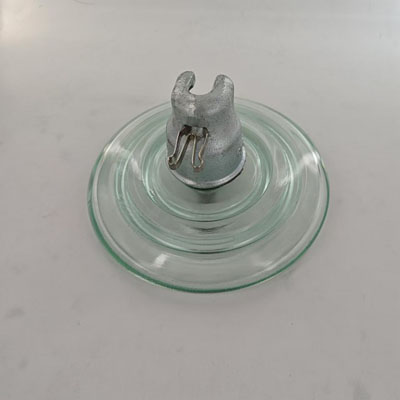

70kN standard disc suspension glass insulator U70BL
Daily output: 10000 pieces

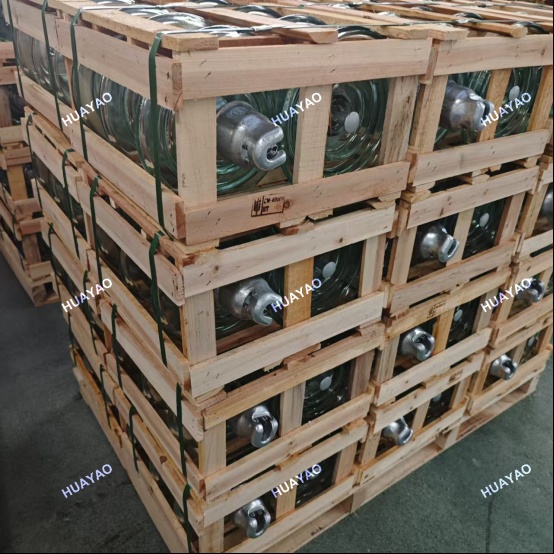

6 pieces in wooden case, then put in pallet.

Payment & Shipping：
Minimum Order Quantity: 10 pieces
Price（usd）: 7.29
Packaging Details: normal export packaging
Supply Ability: 50000pcs
Delivery Port: Ningbo,Shanghai
Payment term: TT, L/C, FCA


Quick detail：

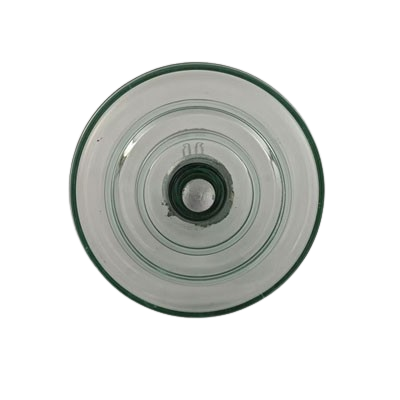

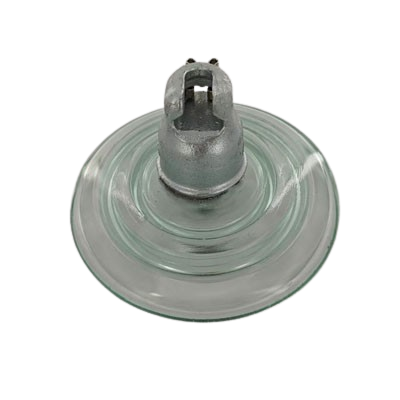

Glass Standard Profile Suspension Insulators LXP-70 / U70BL

Dimensions
Diameter (D): 255mm
Spacing (H): 146mm
Creepage Distance: 320mm
Coupling Size: 16mm

Mechanical Values
Mechanical Failing Load: 70kN
Tension Proof: 35kN

Electrical Values
Dry Power-frequency Withstand Voltage: 70kV
Wet Power-frequency Withstand Voltage: 40kV
Dry Lightning Impulse Withstand Voltage: 100kV
Puncture Withstand Voltage: 130kV

Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV

Packing and Shipping Data
Net Weight, Approximate: 3.5kg

The Production process flow:

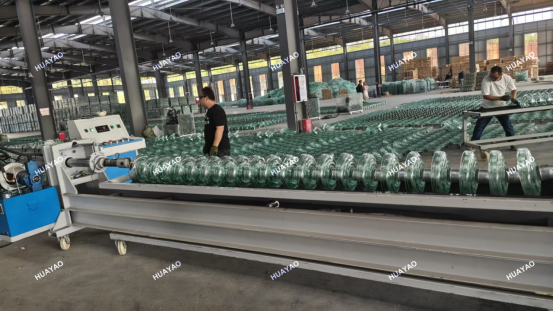

The production process of glass insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:

Mix raw material=>melt glass liquid=>press to glass insulator shape=> tempering treatment=>cold and shock test=> Glue assembly=> routine test and other test=> Finished products package

Ingredients: Ingredients refer to the uniform mixing of different raw materials according to a certain ratio.

Melting: Melting refers to the process of heating ingredients at high temperatures to form a uniform glass liquid.

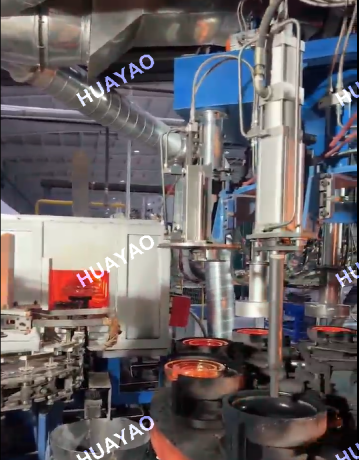

Pressing: After melting and clarification, the glass liquid enters the pressing process through the feeding system, that is, the glass is hydraulically made into glass insulation parts, usually achieved through a fully automatic hydraulic forming machine.

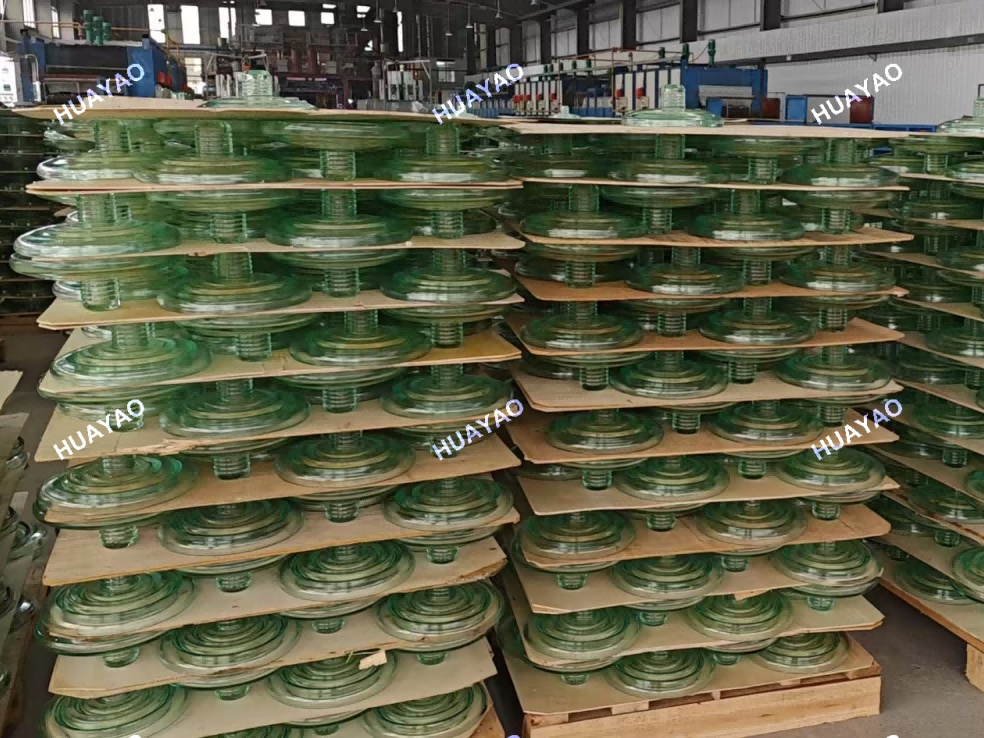

Tempering: Subsequently, the glass piece is subjected to tempering treatment, which means controlled cooling of the glass piece to obtain permanent surface press tress. The equipment involved in the tempering process includes temperature equalization furnaces, tempering machines, etc.



Cold and hot shock: Tempered glass pieces undergo cold and hot shock tests, using a special nickel sulfide treatment furnace and a special nickel sulfide elimination process to homogenize the glass pieces. The quality of the nickel sulfide removal process directly affects the important indicator of the glass insulator after operation - the self explosion rate.

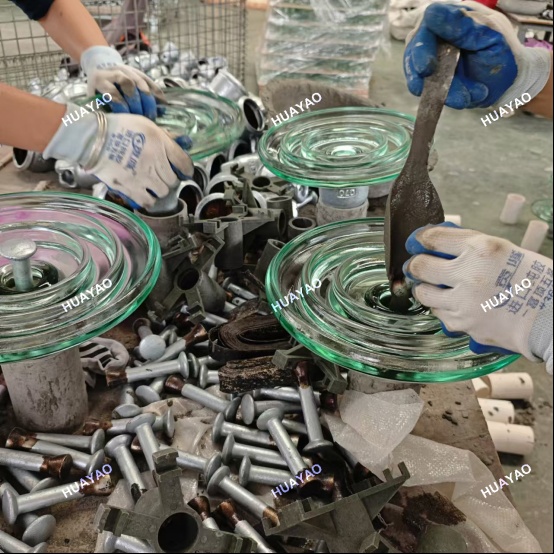

Glue assembly: Use an assembly machine with steel foot positioning assistance to assemble and glue the insulator insulation parts, steel feet, and steel caps. This step requires attention to ensuring the coaxiality of the steel feet, insulation parts, and steel caps. Poor coaxiality can also lead to high self explosion rates. Inspection: Conduct a 50%



Tensile load test: Tensile load test on the glass insulators that have been glued together, check the height of the insulator structure, etc., to ensure that the insulators meet the standard requirements.



Finished products package: pack the goods according to customer request.

For overseas customers use export wooden box with fumigation seal.



For domestic customer orders use bamboo package
