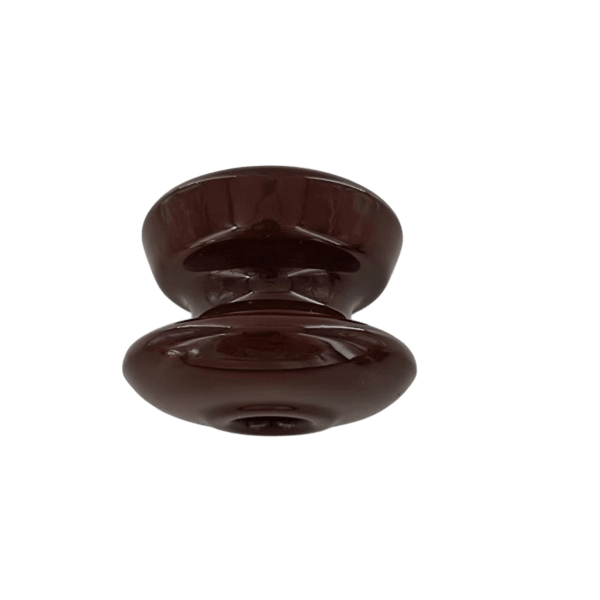

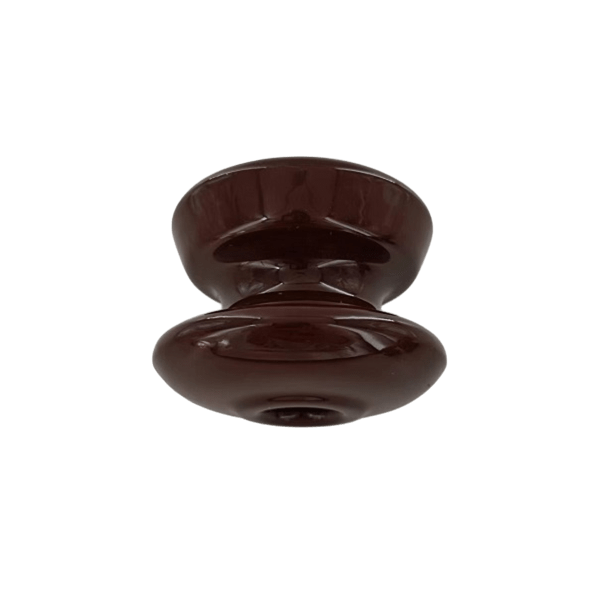

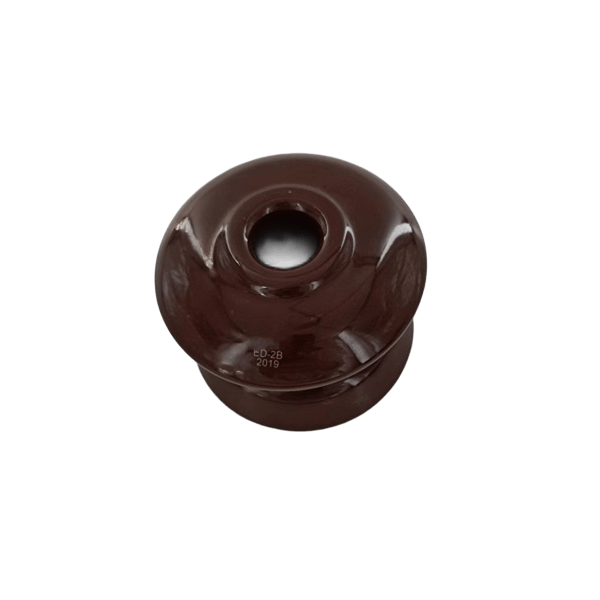

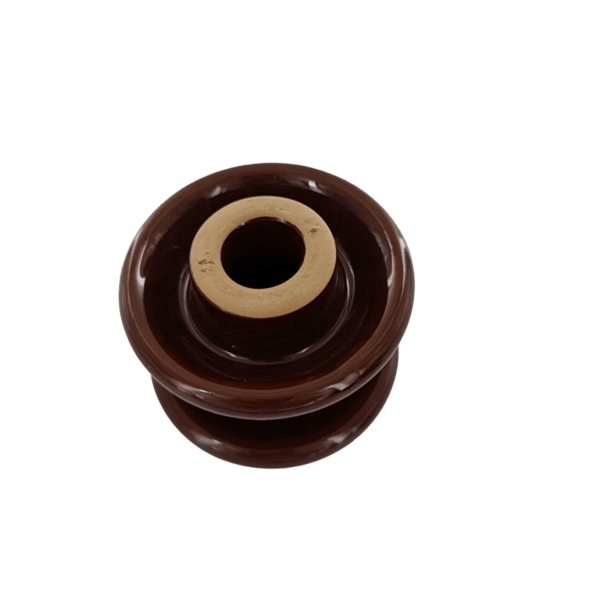

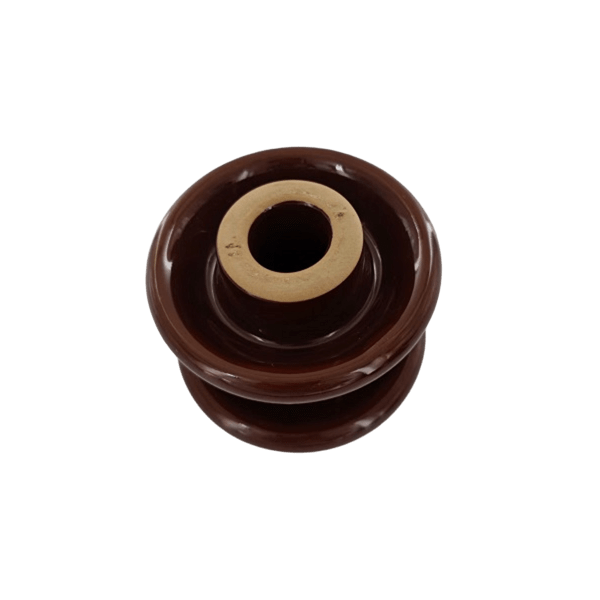

Shackle porcelain insulators ED-2B

Description:

Shackle insulator, also known as butterfly insulator
Appearance: Its shape resembles a butterfly or tea saucer, with a large umbrella skirt, which increases the surface area of the insulator, effectively improving insulation performance and preventing the invasion of pollutants such as rainwater.
The shackle insulator has two larger umbrella skirts in the shape of butterflies, with wires tied in the middle of the two umbrellas, a hole pierced in the middle, and fixed to the crossbar with nails.

Product Details

ED-2B porcelain shackle type insulator    Place of Origin:  China Brand name:  HUAYAO Certification:  ISO9001 Daily output:  10000 piece Payment & Shipping Minimum Order Quantity: 10 pieces Packaging Details:  normal export packaging Supply Ability :  50000pcs Delivery Port:  Ningbo,Shanghai Payment term:  TT, L/C, FCA

Quick Detail：

Porcelain Standard Profile shackle Insulators ED-2B Dimensions Diameter (D): 90mm Spacing (H): 76mm  Electrical Values Low frequency dry flashover voltage:25kV Low frequency wet flashover voltage: 13kV Mechanical tensile strength: 13.5kN

Related products for porcelain insulator:

The Production process flow:

The production process of porcelain insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:
Mix raw material=>make blank shape=>Drying=> Glazing=>put into kiln=> Glue assembly=> routine test and other test=> Finished products package

Workshop of Jiangxi Huayao Electric Co.,Ltd：
