Introduction to porcelain power line insulators
In the expansive field of electrical engineering, porcelain power line insulators hold a pivotal role. These insulators are essential components in power transmission systems that ensure the safe and efficient distribution of electricity. Porcelain, a material acclaimed for its electrical insulation properties and robustness, is widely utilized in manufacturing these insulators. This article explores the comprehensive journey of porcelain power line insulators, emphasizing their manufacturing, benefits, challenges, and prospects in the electrical industry.
Historical Development of Porcelain Insulators
● Evolution of Insulator Materials
The journey of electrical insulators has witnessed constant evolution, driven by innovations that aim to enhance efficiency and safety. Initially, insulators were crafted from simple materials like wood and ceramics. However, their performance under high voltages and in aggressive environmental conditions prompted the need for more reliable materials.
● Key Milestones in Porcelain Insulator Development
Porcelain emerged as a superior choice due to its excellent insulating properties, mechanical strength, and ability to withstand harsh environmental conditions. Over time, advancements in the manufacturing processes of porcelain insulators, coupled with a better understanding of material properties, significantly enhanced their performance. Today, porcelain power line insulators are integral to modern electricity transmission.
Properties of Porcelain Insulators
● Electrical Resistivity and Dielectric Strength
Porcelain power line insulators are renowned for their high electrical resistivity, which is crucial in preventing electrical currents from unintentionally grounding. Their remarkable dielectric strength ensures they can withstand high voltage levels without breaking down, making them indispensable in high-voltage transmission lines.
● Mechanical Strength and Thermal Stability
The mechanical strength of porcelain insulators allows them to endure physical stresses such as wind loads and the weight of power transmission lines. Additionally, their thermal stability ensures consistent performance across a wide range of temperatures, avoiding any degradation in insulating capabilities.
Types of Porcelain Insulators in Power Lines
● Pin and Post Insulators
Pin insulators are frequently used in low to medium voltage applications, known for their simplicity and cost-effectiveness. Post insulators, on the other hand, provide robust support for conductors and are predominantly used in high-voltage applications. Each type offers specific advantages suited to particular environmental and voltage conditions.

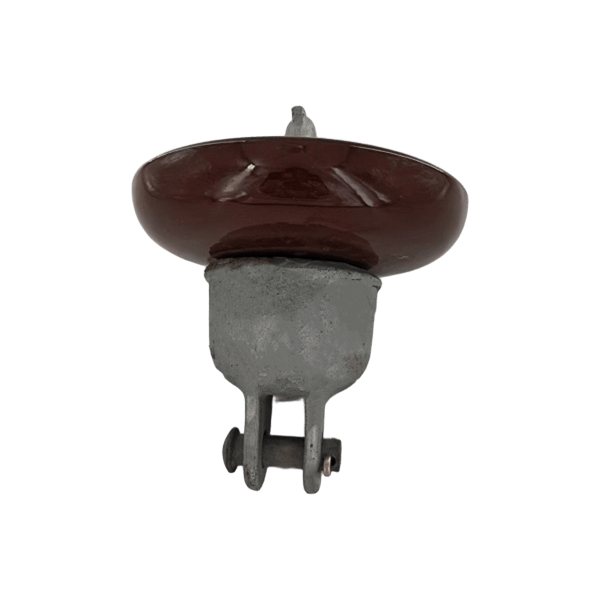

● Suspension and Strain Insulators
Suspension insulators are designed to support the weight of power lines while ensuring electrical insulation. They are preferred in high voltage applications due to their ability to be assembled into insulator strings to accommodate increasing voltage levels. Strain insulators, also known as tension insulators, are used where lines experience significant tension, such as at sharp turns or endpoints.
Porcelain Insulators and Voltage Levels
● Suitability for Low, Medium, and High Voltages
Porcelain power line insulators are engineered to perform across different voltage levels. Pin insulators are typically suitable for voltages up to 33kV, while suspension insulators can handle voltages from 33kV to several hundred kV. This versatility ensures that porcelain insulators can address various requirements of modern electrical grids.
● Examples of Application in Different Voltage Scenarios
These insulators are foundational in diverse applications, from rural distribution lines, where lower voltages prevail, to urban infrastructure and cross-country transmission lines that require robust high-voltage insulators.
Advantages of Porcelain Over Other Materials
● Comparison with Glass and Composite Insulators
Porcelain insulators offer several advantages over glass and composite materials, including superior mechanical strength and long-term resistance to weathering and environmental wear. Porcelain is also less prone to surface damage from pollution and has a proven track record of durability in varied environmental conditions.
● Long-Term Performance and Reliability
The reliability and longevity of porcelain power line insulators are well-documented, making them a preferred choice for utilities aiming to minimize maintenance costs and enhance the longevity of their infrastructure.
Challenges and Limitations of Porcelain Insulators
● Weathering and Environmental Impact
Despite their advantages, porcelain insulators can be susceptible to damage from severe environmental conditions such as extreme cold and chemical exposure. Such factors can affect their insulation properties, necessitating regular inspections and maintenance.
● Mechanical Stress and Maintenance Concerns
The mechanical stress endured by insulators can lead to cracks and other structural damages over time. These issues underscore the importance of regular maintenance and the development of innovative solutions to enhance resilience against mechanical and environmental stressors.
Porcelain Insulators in Modern Energy Infrastructure
● Role in Sustainable Energy Systems
Porcelain power line insulators play a crucial role in the expanding world of sustainable energy systems, including solar and wind power generation, where they facilitate efficient and reliable electricity transmission.
● Integration with Smart Grid Technologies
As smart grid technologies evolve, the integration of porcelain insulators into these systems becomes vital. Their reliability ensures that energy distribution remains uninterrupted, facilitating the efficient operation of smart grids designed to optimize energy consumption and distribution.
Innovations and Future Trends in Porcelain Insulation
● Advances in Material Science
Recent advancements in material science are paving the way for the development of hybrid insulators where porcelain is combined with other materials to enhance performance. These innovations could potentially lead to insulators with improved resistance to environmental and mechanical stresses.
● Potential for Enhanced Performance
Future trends suggest that porcelain power line insulators will continue to evolve, driven by a need for improved electrical performance and increased resilience against environmental challenges. Manufacturers are likely to develop more sophisticated insulation solutions that will cater to the growing demands of expanding electrical infrastructures globally.
Conclusion: The Importance of Porcelain Insulators in Energy
In conclusion, porcelain power line insulators are indispensable in the energy sector, providing crucial support in the transmission and distribution of electricity. As power demands increase and the transition towards sustainable energy systems accelerates, the role of porcelain insulators will become even more significant. With ongoing advancements and innovations, these insulators will continue to be at the forefront of ensuring efficient and reliable electrical grids.
