Introduction

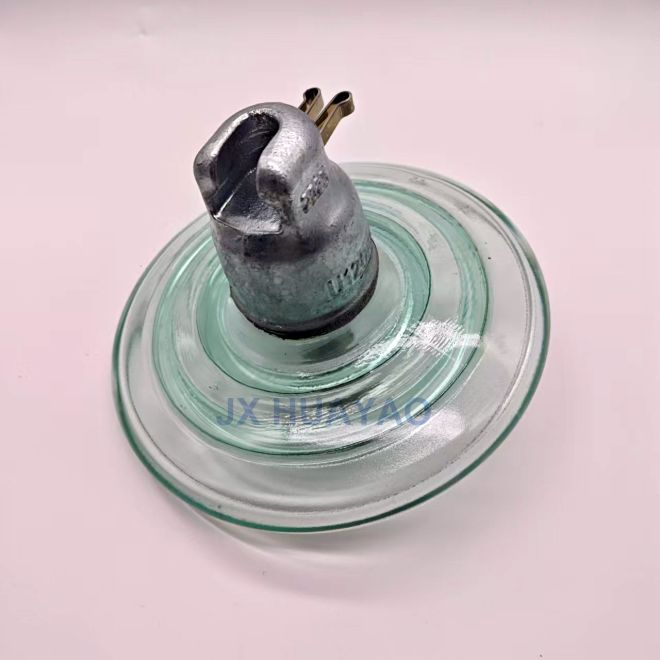

powerline glass insulators play a critical role in the safety and efficiency of electrical systems. These components, despite their apparent simplicity, are essential in preventing electrical faults and maintaining the reliability of power grids. The demand for glass insulators has increased, with suppliers, manufacturers, and factories offering wholesale powerline glass insulators. However, identifying defective insulators is crucial to ensure system integrity. This article explores the signs of insulator damage, safety protocols, repair methods, and the role of trusted suppliers like Huayao in delivering quality solutions.
Identifying Common Insulator Failures
● Types of Visible Damage
Defective powerline glass insulators often show visible signs of damage, such as cracks, chips, and surface abrasions. These defects can occur due to mechanical impacts or environmental factors, leading to potential failure. When assessing insulators, look for any discoloration, which may indicate exposure to excessive heat or chemical reactions with environmental pollutants. Additionally, ensure that there are no signs of physical deformities that could compromise the structural integrity of the insulator.
● Detection Tools for Hidden Issues
Not all defects are visible to the naked eye. Advanced testing tools, including megohmmeters and insulation resistance testers, are essential for detecting hidden issues. These tools measure the insulator's resistance capabilities, identifying weaknesses that could lead to electrical faults. Partial discharge detectors are also valuable in spotting areas where the insulator may fail under high voltage conditions, providing an additional layer of safety in assessing insulator quality.
Factors Leading to Insulator Deterioration
● Environmental Influences
Environmental conditions significantly impact the lifespan and performance of powerline glass insulators. Extreme temperatures, high humidity, and exposure to pollutants can accelerate the aging process, leading to deterioration. Acid rain, salt spray near coastal areas, and industrial emissions can also corrode glass surfaces, weakening the insulator over time.
● Mechanical and Thermal Stresses
Insulators are subjected to various mechanical and thermal stresses during their service lifetime. Mechanical stresses can arise from wind, ice loading, or mechanical handling during installation and maintenance. Thermal stresses result from temperature fluctuations that cause expansion and contraction, potentially leading to micro-cracks and eventual failure.
● Aging and Material Defects
Aging is an inevitable process that affects all components, including glass insulators. Over time, the material properties degrade, and hairline fractures can develop. Additionally, defects during the manufacturing process, such as air bubbles or improper tempering, can predispose insulators to premature failure. Regular inspections and quality checks by reputable suppliers, such as those from a reliable powerline glass insulator manufacturer, are necessary to mitigate these risks.
Safety Measures in Insulator Inspection
● De-energization and Isolation Processes
Before inspecting or repairing powerline glass insulators, it is critical to de-energize and isolate the system. This step prevents electrical accidents and ensures the safety of personnel. Proper grounding of the equipment further enhances safety by eliminating the risk of electrical shock.
● Use of Personal Protective Equipment (PPE)
Appropriate personal protective equipment is vital when handling glass insulators. This includes wearing insulated gloves, protective eyewear, and suitable clothing to guard against electrical hazards and sharp edges from damaged insulators. Safety should always be a priority to prevent injuries during inspection and maintenance.
Initial Cleaning before Insulator Inspection
● Tools and Methods for Effective Cleaning
Cleaning is a crucial preparatory step in the inspection process. Tools such as soft brushes, cloths, and compressed air can effectively remove dust, dirt, and other contaminants from the insulator surface. This step is necessary to ensure accurate assessments and avoid misjudging the condition of the insulators.
● Removing Foreign Materials and Debris
All foreign materials, including grease, oil, and moisture, must be removed from the insulator surface. These substances can interfere with the testing process and lead to false readings or further damage during inspection. A clean surface provides a clearer view for identifying any structural abnormalities or surface defects.
Evaluation Techniques for Insulator Integrity
● Visual Examination and Its Limits
Visual examination is often the first step in assessing the condition of powerline glass insulators. While effective for detecting obvious defects like chips and cracks, it has limitations in identifying internal or microscopic issues that could affect performance. Thus, it should be complemented with other testing methods for a comprehensive evaluation.
● Advanced Testing Methods and Equipment
Advanced testing methods like dielectric strength tests and ultrasonic inspections provide deeper insights into the condition of insulators. These tests reveal internal flaws that are not visible externally, such as voids or inclusions within the glass. Utilizing state-of-the-art equipment ensures that insulators meet safety and performance standards.
Repair Strategies for Different Damages
● Patching for Minor Cracks and Punctures
Patching is a common repair technique for minor visible damages, such as surface cracks and small punctures. It involves applying a compatible insulating material over the damaged area and securing it with adhesives, ensuring the defect does not develop into a more significant problem.
● Wrapping Techniques for Linear Damages
For linear damages such as abrasions, wrapping techniques are often used. This method involves wrapping a new layer of insulating material around the damaged section, providing an additional barrier against environmental stresses and preserving the insulator's integrity.
Coating Solutions for Complex Insulator Damage
● Application Methods for Liquid and Paste Coatings
In cases of complex damages, such as discoloration or carbonization, coating the insulator with liquid or paste materials is effective. These coatings provide protective layers that seal off the damaged areas, preventing further degradation and enhancing the insulator's electrical properties.
● Curing Processes and Their Effectiveness
After applying coatings, curing is essential to ensure the material adheres properly and achieves the desired protective qualities. Heat or light is often used to cure the coatings, solidifying them and restoring the insulator to a functional state. This process requires careful monitoring to achieve optimal results.
Verification of Insulator Repairs
● Conducting Electrical Resistance Tests
Post-repair verification involves conducting electrical resistance tests to assess the efficacy of the repairs. These tests measure the insulator's ability to prevent electrical leakage and ensure that it meets specified safety standards. Repaired insulators should exhibit resistance levels comparable to new ones.
● Inspecting for Defects Post-Repair
Visual and instrumental inspections are critical after repairs to ensure no defects remain. Inspectors should look for bubbles, gaps, or signs of improper adhesion in the repaired areas, as these could compromise the insulator's performance. Documentation of these inspections forms part of a comprehensive maintenance record.
Documenting Insulator Repairs and Maintenance
● Importance of Detailed Records
Maintaining detailed records of repairs and inspections is vital for tracking the condition of powerline glass insulators over time. These records assist in identifying patterns of wear and predicting future maintenance needs, ultimately enhancing the reliability of the power grid.
● Future Reference and Maintenance Scheduling
Documentation also aids in scheduling regular maintenance and inspections, preventing unexpected failures and extending the lifespan of insulators. It provides a historical reference that informs future decisions and promotes proactive management of powerline assets.
Importance of Regular Insulator Inspections
● Preventative Measures to Avoid Failures
Regular inspections of powerline glass insulators are essential for preventing failures that could lead to power outages or safety issues. Proactive identification and resolution of potential problems protect the infrastructure and ensure the continuous delivery of electricity.
● Benefits of Early Detection and Corrective Action
Early detection of defects allows for timely corrective actions, reducing the risk of costly repairs and downtime. By addressing issues before they escalate, utilities can maintain grid stability and avoid disruptions in the power supply.
Partnering with Trusted Suppliers: The Role of Huayao
●Introduction to Huayao
Jiangxi Huayao Electric Co., Ltd. is a premier glass insulator manufacturer based in Shangbu Town, China. With a registered capital of 120 million yuan, Huayao covers an area of 47 acres and employs over 150 skilled personnel. The company integrates research, development, production, and sales, adhering to rigorous standards like ISO9001 and ISO45001. Huayao specializes in high-capacity glass insulators ranging from 40kN to 550kN, suitable for high voltage lines up to 500kV. Committed to quality and customer satisfaction, Huayao's products are trusted worldwide, making a significant impact in power transmission sectors.
