300kN insulators UG300B/195/480D double-umbrella Suspension Electrical Glass Insulator

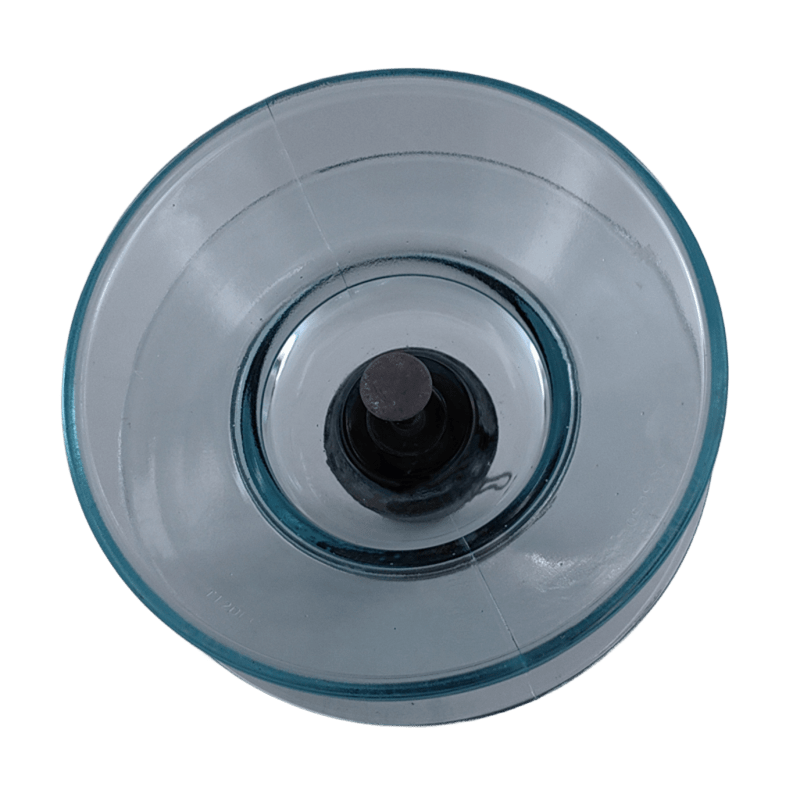

300kN double-umbrella disc suspension glass insulator UG300B/195/480D

Structural composition:

The product consists of an iron cap, tempered glass parts, and steel feet, and is integrated with cement adhesive. This product adopts the most advanced cylindrical head structure internationally, characterized by small head size, light weight, high strength, and large creepage distance. Can save metal materials and reduce line costs. To meet the needs of live working, traditional domestic structural shapes are used on the brim of the hat.

Product Details

High Voltage Insulator tempered glass insulator UG70B146/450D Place of Origin:  China Brand name:  HUAYAO Certification:  ISO9001 Daily output:  10000 pieces Payment & Shipping Minimum Order Quantity: 10 pieces Packaging Details:  normal export packaging Supply Ability:  50000pcs Delivery Port :  Ningbo,Shanghai Payment term:  TT, L/C, FCA

Quick Detail

Glass Double umbrella disc Suspension Insulators UG300B195/480D Dimensions Diameter (D): 330mm Spacing (H): 195mm Creepage Distance: 480mm Coupling Size: 24mm Mechanical Values Mechanical Failing Load: 150kN Tension Proof: 85kN Electrical Values Dry Power-frequency Withstand Voltage: 80kV Wet Power-frequency Withstand Voltage: 50kV Dry Lightning Impulse Withstand Voltage: 130kV Puncture Withstand Voltage: 130kV Radio Influence Voltage Data Test Voltage RMS to Ground: 10kV Maximum RIV at 1000 kHz: 50μV Packing and Shipping Data Net Weight, Approximate: 13.0kg

The Production process flow:

The production process of glass insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:
Mix raw material=>melt glass liquid=>press to glass insulator shape=> tempering treatment=>cold and shock test=> Glue assembly=> routine test and other test=> Finished products package
Huayao advantage products are glass insulators with a capacity of 40kN-550kN, which can meet the requirements of 10kV-500kV ultra-high voltage and extra high voltage transmission and transformation lines.
Huayao strictly complies with GB, ANSI, BS, DIN, AS, IEC standard designs, applicable to power transmission lines and substations.
Huayao has established a production line for ultra-high voltage tempered glass insulators with advanced production technology by introducing world-class production and testing equipment from Germany, Italy, and other countries. It has the ability to produce over 6 million pieces of AC and DC glass insulators annually.

Test report of Jiangxi huayao electric Co.,ltd glass insulator

Pre-shipment inspection from third party such as INTERTEK, SGS, BV or customer themselves.

Standard of glass insulator:

The tests have been performed in accordance with:
GB/T1001.1-2021 Insulators for overhead lines with a norminal voltage above 1000V Part1: Ceramic or glass insulator units for a.c. systems Definitions, test methods and acceptance criteria (IEC 60383-1:2021 MOD)
GB/7253-2019 Insulator for overhead lines with a nominal voltage above 1000V-Ceramic or glass insulator units for a.c. systems-Characteristics of insulator units of cap and pin type (IEC 60305:2021 MOD)
IEC 60383-1:2023 Insulators for overhead lines with a norminal voltage above 1000V
IEC 60120:2020 Dimensions of ball and socket couplings of string insulator units
Jiangxi Huayao electric Co.,ltd strictly compliance with above standard. We do the factory test report as above standard.
We always do following test for each products:
1. Verification of the Dimensions
2. Verifications of Displacements
3. Locking system test
4. Galvanized test
Galvanized layer Specified Value
Cap ：Minimum values of single sample  70 m；
Average values of all samples  85 m
Pin：Minimum values of single sample  70 m；
Average values of all samples  85 m
5.Thermal shock test
Specified values
The test sample is heated to above the temperature of more than100 K, and then immersed in temperature which does not exceed 50C in water for more than 2 min.
Test condition pieces glass insulators are heated to the temperature of 130C,  the temperature of cold water25C, temperature difference 105K, keep in cold water for 2 min.
Test result Samples are OK.
6.Mechanical Failing Load Test
Specified Values    SFL=160kN, Mechanical load 165kN no mechanical failing
7.Power frequency puncture withstand test
The results of power frequency puncture withstand test please check the following table, no puncture.

Package of the glass insulator：

Standard export wooden cases Non fumigation wooden box
