210kN insulators U210BP170M open air profile Suspension Electrical Glass Insulator

Glass insulator is a special insulation component used in overhead transmission lines to provide insulation and support for wires. Huayao has established a production line for ultra-high voltage tempered glass insulators with advanced production technology by introducing world-class production and testing equipment from Germany, Italy, and other countries. It has the ability to produce over 6 million pieces of AC and DC glass insulators annually.

Jiangxi Huayao Electric Co., Ltd., which is located in Shangbu Town Industrial Park, Luxi County, Pingxiang City, Jiangxi Province,China is one of the leading glass insulator manufacturers in China. The registered capital of the company is 120 million yuan, covering an area of 47 acres, with a total construction area of 17200 square meters and more than 150 employees.

The product consists of an iron cap, tempered glass parts, and steel feet, and is integrated with cement adhesive. This product adopts the most advanced cylindrical head structure internationally, characterized by small head size, light weight, high strength, and large creepage distance. Can save metal materials and reduce line costs. To meet the needs of live working, traditional domestic structural shapes are used on the brim of the hat.

Main types of glass insulator

Glass insulator is including standard type, pollution resistant type, DC type, spherical type, aerodynamic type, ground wire type, and contact network for electrified railways
Jiangxi Huayao electric Co.,ltd produce standard type glass insulator 40-550Kn, Pollution resistant type 70-400Kn, mutil-umbrella type 120-330kN, Glass insulator aerodynamic type 120-300kN, ground wire type.
Good anti-pollution flashover performance of aerodynamic Insulator
The skirt structure of the aerodynamic insulator can effectively reduce the deposition of filth. The distance between the umbrella skirt and shape design makes it difficult for dust, salt spray and other filthy substances to accumulate on the surface of the insulator. For example, in industrial pollution areas or coastal salt spray environment, traditional insulators may lead to a decline in insulation performance due to the accumulation of filth, but aerodynamic insulators can take advantage of their structural advantages to make filth more easily washed away under natural conditions such as wind and rain.

Product Details

210kN aerodynamic Insulator disc suspension glass insulator U210BP/170M Place of Origin: China Brand name: HUAYAO Certification: ISO9001    Daily output ：10000 pieces Payment & Shipping Minimum Order Quantity: 10 pieces Packaging Details： normal export packaging Supply Ability：50000pcs Delivery Port：Ningbo,Shanghai Payment term:   TT, L/C, FCA

Quick Detail

Glass open air profile disc Suspension Insulators U210BP/146M Dimensions Diameter (D): 420mm Spacing (H): 170mm Creepage Distance: 380mm Coupling Size: 20mm Mechanical Values Mechanical Failing Load: 210kN Tension Proof: 105kN Electrical Values Dry Power-frequency Withstand Voltage: 60kV Wet Power-frequency Withstand Voltage: 50kV Dry Lightning Impulse Withstand Voltage: 95kV Puncture Withstand Voltage: 130kV Radio Influence Voltage Data Test Voltage RMS to Ground: 10kV Maximum RIV at 1000 kHz: 50μV Packing and Shipping Data Net Weight, Approximate: 7.3kg

Main types of glass insulator

Glass insulator is including standard type, pollution resistant type, DC type, spherical type, aerodynamic type, ground wire type, and contact network for electrified railways
Jiangxi Huayao electric Co.,ltd produce standard type glass insulator 40-550Kn, Pollution resistant type 70-400Kn, mutil-umbrella type 120-330kN, Glass insulator aerodynamic type 120-300kN, ground wire type.
Good anti-pollution flashover performance of aerodynamic Insulator
The skirt structure of the aerodynamic insulator can effectively reduce the deposition of filth. The distance between the umbrella skirt and shape design makes it difficult for dust, salt spray and other filthy substances to accumulate on the surface of the insulator. For example, in industrial pollution areas or coastal salt spray environment, traditional insulators may lead to a decline in insulation performance due to the accumulation of filth, but aerodynamic insulators can take advantage of their structural advantages to make filth more easily washed away under natural conditions such as wind and rain.

The Production process flow:

The production process of glass insulators in Jiangxi Huayao Electric Co.,Ltd is as follows:

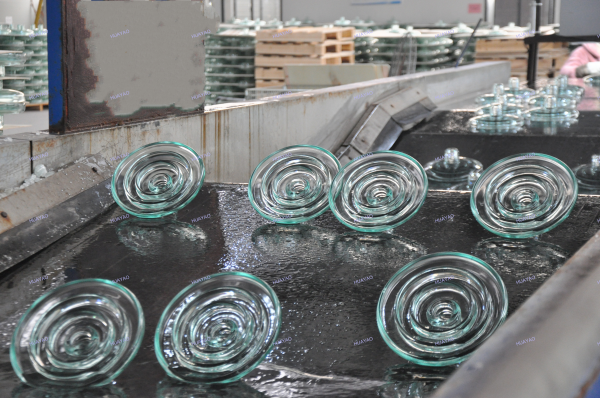

Mix raw material=>melt glass liquid=>press to glass insulator shape=> tempering treatment=>cold and shock test=> Glue assembly=> routine test and other test=> Finished products package.

Test report of Jiangxi huayao electric Co.,ltd glass insulator

Jiangxi Huayao electric Co.,ltd provide test report from third party such as Xi'an High Voltage Apparatus Research Institute Co., Ltd. (XIHARI) ,National ceramic product quality inspection and test center.
Pre-shipment inspection from third party such as INTERTEK, SGS, BV or customer themselves.

Standard of glass insulator:
